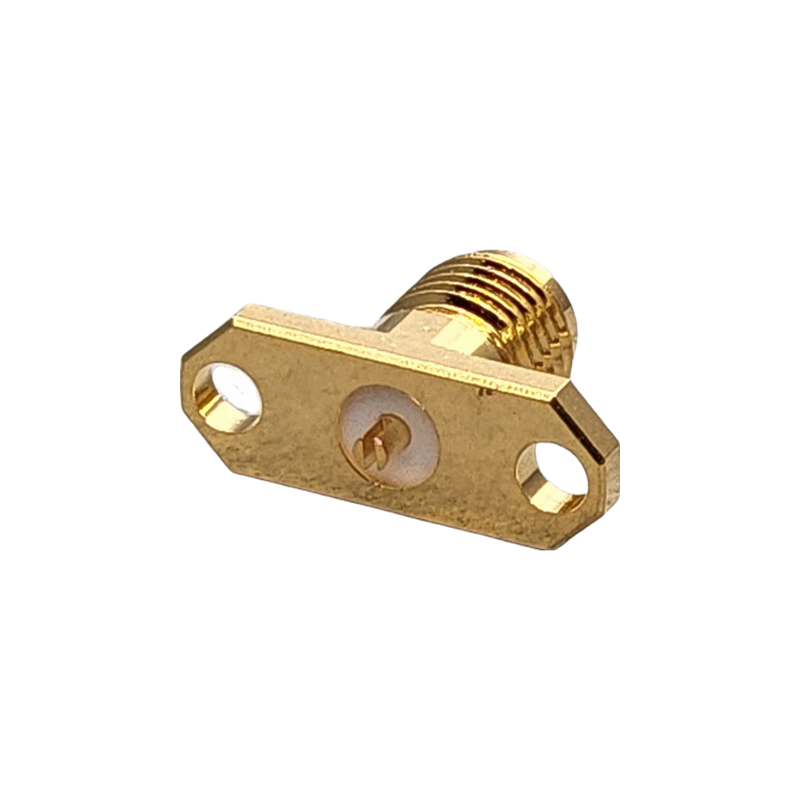

Reverse Polarity SMA Female Panel Mount 2-Hole Connector Solder Attachment Terminal
Mount compliant wireless interfaces directly to enclosure walls with this 50 Ohm RP-SMA Female 2-Hole Flange Panel Connector. Featuring external threads with an internal male center pin contact, it complies with FCC regulatory requirements for consumer and commercial Wi-Fi equipment. The 2-hole flange provides mechanical stability against panel twisting, while the rear solder terminal accepts direct wire or pin connections for internal RF routing.
Specifications
|
Specification
|
Value
|
|
Connector Series
|
RP-SMA
|
|
Connector Gender
|
Female
|
|
Connector Polarity
|
Reverse Polarity
|
|
Connector Impedance
|
50 Ohm
|
|
Mount Method
|
Panel Mount (2-Hole Flange)
|
|
Attach Method
|
Solder Terminal
|
|
Body Material
|
Brass
|
|
Body Plating
|
Gold
|
|
Contact Plating
|
Gold
|
|
Dielectric Type
|
PTFE
|
