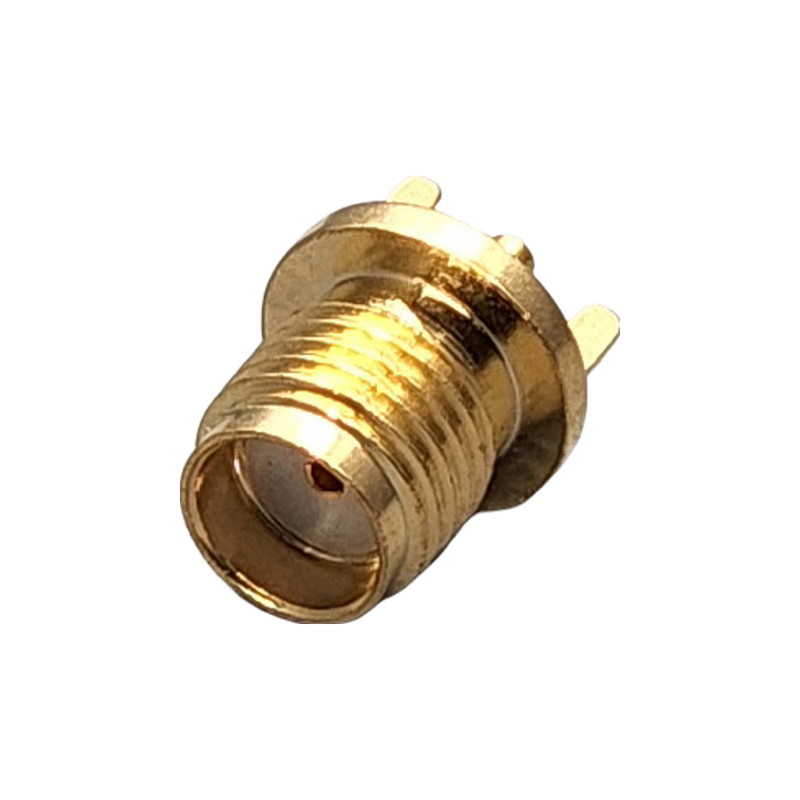

SMA Female Connector Solder Attachment PCB Edge Mount
Integrate standard SMA ports along circuit board margins with this 50 Ohm SMA Female PCB Edge Mount Connector. Designed for solder attachment directly onto PCB edges, it provides a clean, low-profile coaxial interface that optimizes space inside tight RF enclosures and test fixtures. Built with a gold-plated brass body and PTFE insulation, it delivers consistent 50 Ohm impedance matching and low return loss from DC through 18 GHz.
Specifications
|
Specification
|
Value
|
|
Connector Series
|
SMA
|
|
Connector Gender
|
Female
|
|
Mount Method
|
PCB Edge Mount
|
|
Attach Method
|
Solder
|
|
Connector Polarity
|
Standard
|
|
Connector Impedance
|
50 Ohm
|
|
Body Material
|
Brass
|
|
Body Plating
|
Gold
|
|
Contact Plating
|
Gold
|
|
Dielectric Type
|
PTFE
|
