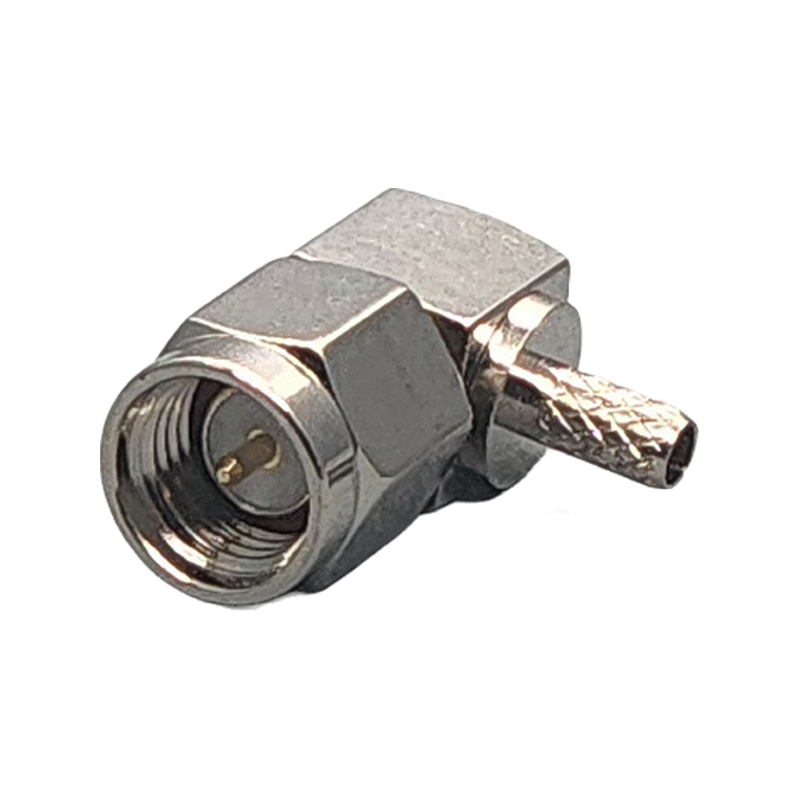

SMA Male Right Angle Connector Crimp Coax RG174, RG188, RG316
Eliminate severe cable bending in low-clearance environments with this 50 Ohm SMA Male Right Angle Crimp Connector. Designed for RG174, RG188, and RG316 coaxial cables, the 90-degree right-angle housing simplifies cable routing along chassis walls and inside compact RF housings. Machined from durable gold-plated brass with PTFE insulation, it delivers high electrical continuity and stable 50 Ohm impedance matching from DC through 12.4 GHz.
Specifications
|
Specification
|
Value
|
|
Connector Series
|
SMA
|
|
Connector Gender
|
Male
|
|
Body Style
|
Right Angle (90°)
|
|
Connector Polarity
|
Standard
|
|
Connector Impedance
|
50 Ohm
|
|
Attach Method
|
Crimp
|
|
Cable Compatibility
|
RG174, RG188, RG316
|
|
Body Material
|
Brass
|
|
Body Plating
|
Gold
|
|
Contact Plating
|
Gold
|
|
Dielectric Type
|
PTFE
|
