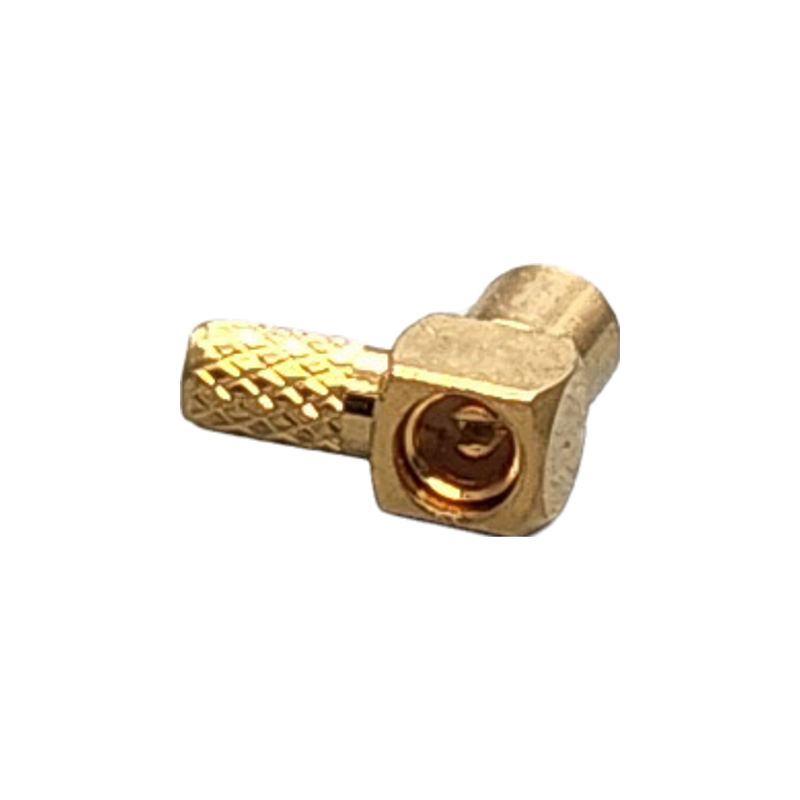

Reverse Polarity MMCX Jack Right Angle Connector Crimp Coax RG174, RG188, RG316
Route micro-coaxial cable assemblies in ultra-compact, FCC-regulated hardware using this Reverse Polarity MMCX Jack (Female) Right Angle Crimp Connector. Engineered for RG174, RG188, and RG316 cables, its 90-degree right-angle construction reduces vertical profile requirements on tight PCB layouts. The reverse-polarity contact structure prevents non-compliant mating, while the snap-on interface and gold-plated brass body deliver stable 50 Ohm performance through 6 GHz.
Specifications
|
Specification
|
Value
|
|
Connector Series
|
RP-MMCX
|
|
Connector Gender
|
Jack (Female)
|
|
Body Style
|
Right Angle (90°)
|
|
Connector Polarity
|
Reverse Polarity
|
|
Connector Impedance
|
50 Ohm
|
|
Attach Method
|
Crimp
|
|
Cable Compatibility
|
RG174, RG188, RG316
|
|
Body Material
|
Brass
|
|
Body Plating
|
Gold
|
|
Contact Plating
|
Gold
|
|
Dielectric Type
|
PTFE
|
