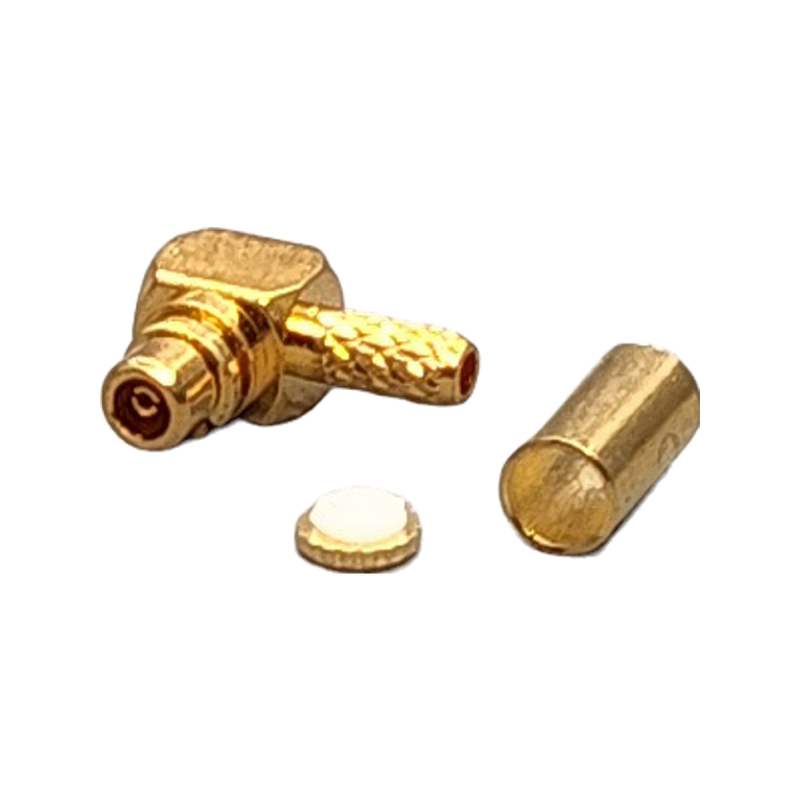

Reverse Polarity MMCX Plug Right Angle Connector Crimp Coax RG178, RG196, 0.8D-2V
Optimize high-density board layouts using this RP-MMCX Male Plug Right Angle Crimp Connector for RG178, RG196, and 0.8D-2V ultra-thin coax. Featuring 360-degree post-mating rotation, a 90° body profile, and reverse polarity (female socket contact), it eliminates cable strain and minimizes vertical clearance in miniaturized wireless gear.
|
Specification
|
Value
|
|
Connector Series
|
RP-MMCX
|
|
Connector Gender
|
Plug (Male)
|
|
Connector Polarity
|
Reverse Polarity
|
|
Connector Impedance
|
50 Ohm
|
|
Body Style
|
Right Angle
|
|
Attachment Method
|
Crimp
|
|
Compatible Coax
|
RG178, RG196, 0.8D-2V
|
|
Body Material
|
Brass
|
|
Body Plating
|
Gold
|
|
Contact Plating
|
Gold
|
|
Dielectric Type
|
PTFE
|
