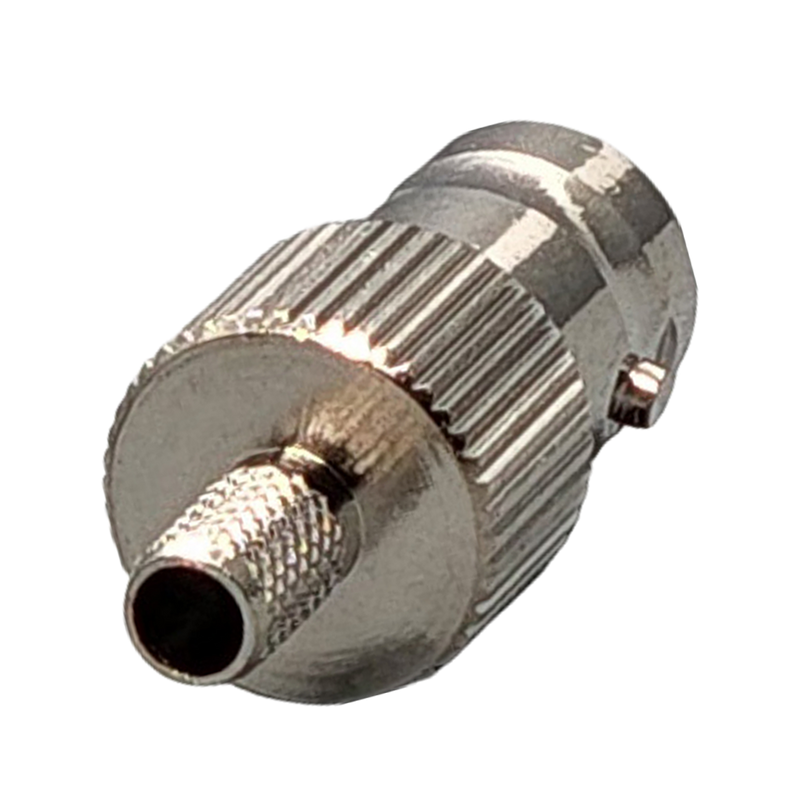

Reverse Polarity BNC Female Connector Crimp Coax RG55A, RG58A, RG58C
Adapt 50 Ohm RG55A, RG58A, and RG58C coaxial lines to FCC-compliant wireless equipment with this Reverse Polarity BNC (RP-BNC) Female Crimp Connector. Featuring the quick-release quarter-turn bayonet coupling mechanism of the BNC family paired with a reverse-polarity center contact (internal male pin), it offers secure, tool-free mating for consumer and commercial Wi-Fi gear. Built from gold/nickel-plated brass with a high-dielectric PTFE core, it ensures low insertion loss and dependable signal transfer.
Specifications
|
Specification
|
Value
|
|
Connector Series
|
RP-BNC
|
|
Connector Gender
|
Female
|
|
Connector Polarity
|
Reverse Polarity
|
|
Connector Impedance
|
50 Ohm
|
|
Attach Method
|
Crimp
|
|
Cable Compatibility
|
RG55A, RG58A, RG58C
|
|
Body Material
|
Brass
|
|
Body Plating
|
Gold / Nickel
|
|
Contact Plating
|
Gold
|
|
Dielectric Type
|
PTFE
|
