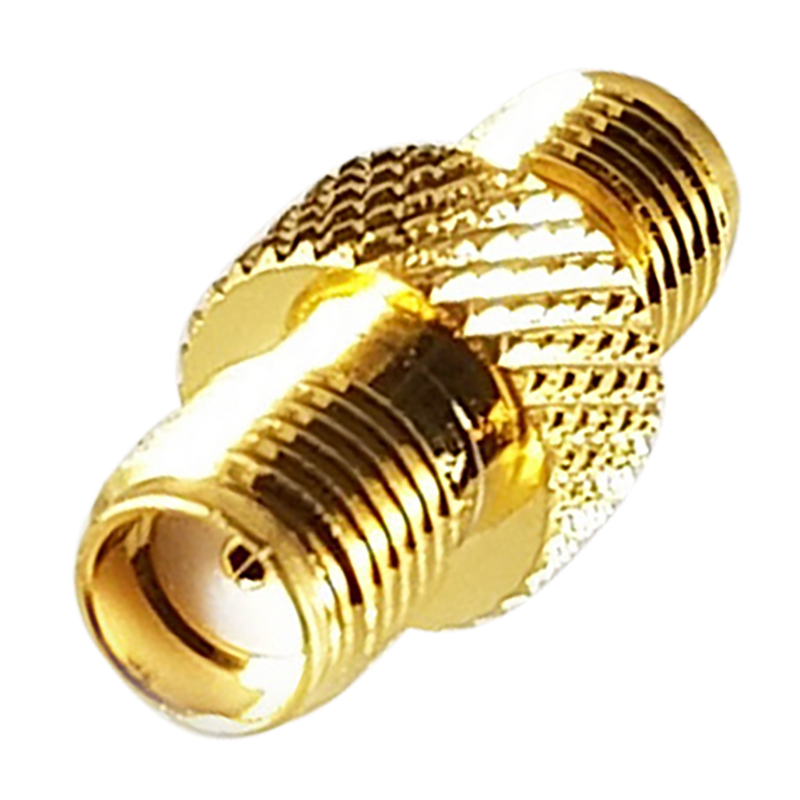

SMA Female to RP-SMA Female Adapter [RFS-100183]
Convert standard SMA male connections to FCC-compliant Reverse Polarity SMA male interfaces with this 50 Ohm adapter. Featuring a standard SMA female port on Side A and an RP-SMA female port (external threads with a male pin) on Side B, it enables simple integration between standard RF gear and commercial wireless antennas. Constructed from durable gold-plated brass with a PTFE core for minimal VSWR up to microwave frequencies.
Specifications
|
Specification
|
Value
|
|
Adapter Type
|
SMA Female to RP-SMA Female
|
|
Connector A
|
SMA Female
|
|
Connector B
|
RP-SMA Female
|
|
Connector Polarity
|
Standard (Side A) / Reverse Polarity (Side B)
|
|
Impedance
|
50 Ohm
|
|
Body Material
|
Brass
|
|
Body Plating
|
Gold
|
|
Contact Plating
|
Gold
|
|
Dielectric Type
|
PTFE
|
