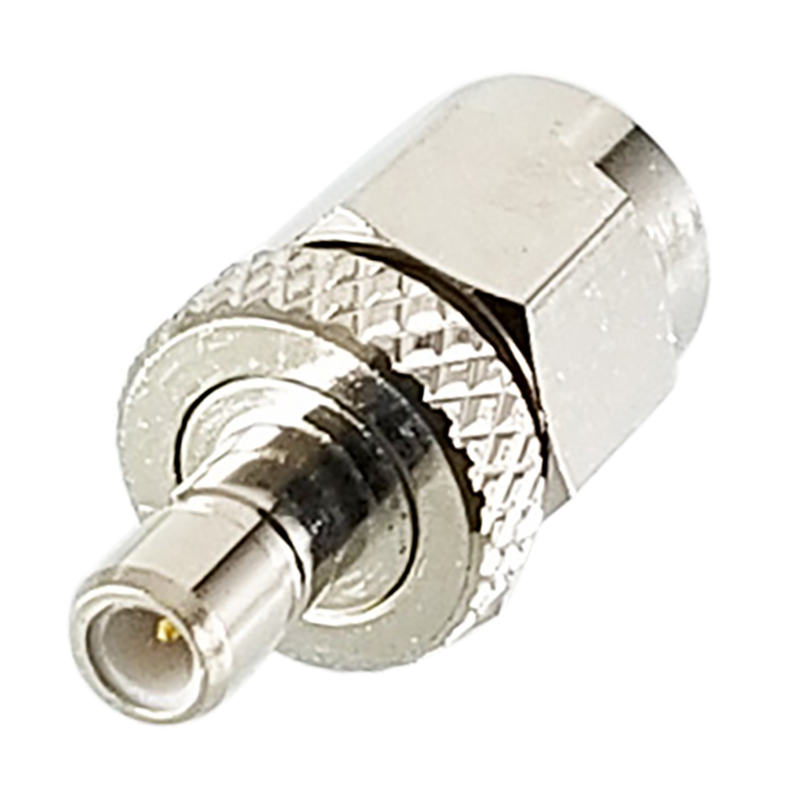

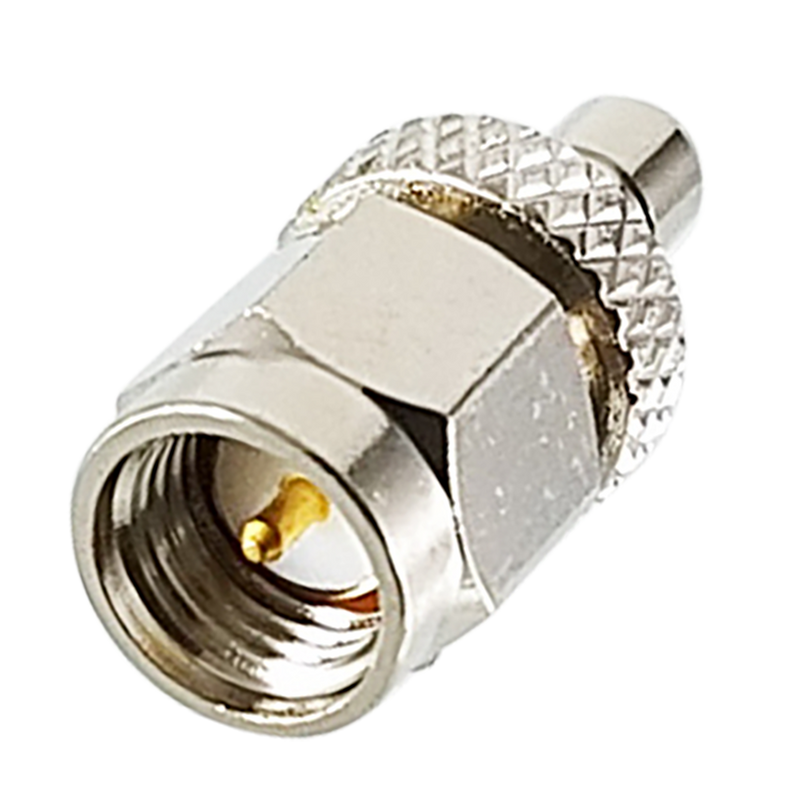

SMA Male to SMB Jack Adapter [RFS-100159]
Transition standard SMA female equipment ports to subminiature snap-on SMB plug assemblies with this 50 Ohm inter-series adapter. Built with a threaded SMA male plug on one side and an SMB jack (female socket) on the other, it provides a compact, reliable bridge for test benches, telecommunications gear, and vehicular RF systems.
Specifications
|
Specification
|
Value
|
|
Adapter Type
|
SMA Male to SMB Jack (Female)
|
|
Connector A
|
SMA Male
|
|
Connector B
|
SMB Jack (Female)
|
|
Adapter Grade
|
Standard / Commercial
|
|
Impedance
|
50 Ohm
|
|
Body Material
|
Brass
|
|
Body Plating
|
Gold
|
|
Contact Plating
|
Gold
|
|
Dielectric Type
|
PTFE
|
